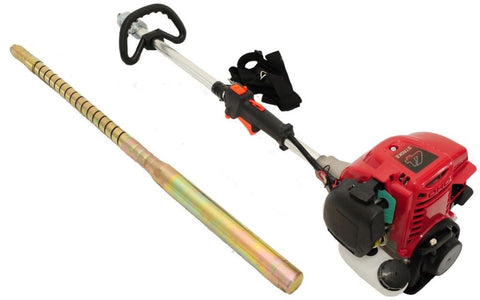

Powerquip GX35cc 4 Stroke Concrete Vibrator 45mm Spub
Achieve stronger, denser and more consistent concrete with the PowerQuip 35cc Four-Stroke Petrol Concrete Vibrator.
Designed to remove trapped air bubbles and excess water from freshly poured concrete, this portable unit helps concrete settle properly around reinforcing steel and throughout formwork.
Powered by a reliable Honda GX35-style four-stroke engine, it runs on standard unleaded petrol with no petrol-and-oil mixing required. Its portable design makes it ideal for worksites where electrical power is unavailable.
Suitable for concrete slabs, foundations, columns, driveways, pathways, retaining walls, fence posts and general concrete construction or repair work.
Features
*Honda GX35-style 35cc four-stroke engine
*Runs on standard 91 or 98 unleaded petrol
*No petrol-and-oil mixing required
*Portable design—no electricity required
*45mm vibrating spud
*Ergonomic handles for improved control
*Shoulder harness and tool kit included
Engine Specifications
*Engine model: Honda GX35 clone/copy
*Engine capacity: 35cc
*Engine type: Single-cylinder, air-cooled four-stroke
*Camshaft: Overhead, belt-driven
*Maximum power: 1.0kW at 7,000rpm
*Horsepower: 1.5HP
*Ignition: Transistor magneto
*Carburettor: Diaphragm type
*Fuel type: 91 or 98 unleaded petrol
*Fuel-tank capacity: 0.65 litres
*Engine-oil capacity: 100ml
Vibrator Specifications
*Spud diameter: 45mm
*Spud body length: 350mm
*Overall spud length: 1,060mm
*Drive connection: 7mm square
*Engine mount-hole spacing: 100mm diagonally, centre to centre
*Clutch diameter: 75mm
Package Includes
PowerQuip 35cc four-stroke engine
Concrete-vibrator drive assembly
45mm vibrating spud attachment
Shoulder harness
Tool kit
Warranty
Includes a 12-month domestic-use warranty. The warranty excludes normal wear-and-tear items, including spark plugs and the vibrating spud end.
Please note: This machine has a Honda GX35-style clone/copy engine. It is not fitted with a genuine Honda engine. Engine oil must be added before first use.
