Powerquip Concrete Vibrator

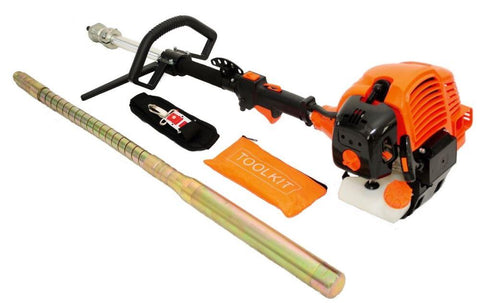

PowerQuip 52cc Petrol Concrete Vibrator – 45mm Spud
Compact, portable and built for efficient concrete compaction, the PowerQuip 52cc Petrol Concrete Vibrator helps remove trapped air and excess water from freshly poured concrete. This allows the concrete to settle properly around reinforcing steel and throughout the formwork, creating a denser, stronger and more consistent finish.
Powered by a 51.7cc two-stroke petrol engine, this self-contained unit is ideal for locations where electrical power is unavailable. The shoulder harness, ergonomic handles and flexible vibrator shaft make it easy to carry and operate around the worksite.
Suitable for concrete slabs, foundations, columns, retaining walls, fence posts, driveways, pathways, construction work and general concrete repairs.
Features
- Powerful 51.7cc two-stroke petrol engine
- Helps release trapped air from wet concrete
- Improves concrete density, strength and consistency
- Helps concrete flow around reinforcing steel and into formwork
- Portable design with no electrical power supply required
- Electronic ignition for reliable starting
- Diaphragm-type carburettor
- Flexible vibrator shaft with 45mm spud
- Ergonomic handles for improved control
- Shoulder harness and tool kit included
- Suitable for residential, commercial and construction use

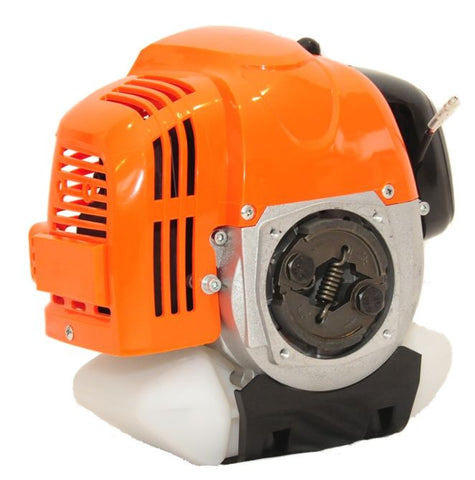

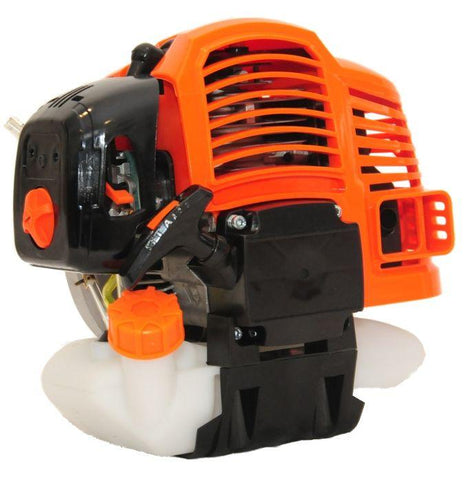

Engine Specifications
| Specification | Details |
|---|---|
| Engine model | 1E44F-E |
| Engine type | Single-cylinder, air-cooled two-stroke |
| Engine capacity | 51.7cc |
| Maximum power | 1.25kW at 7,000rpm |
| Fuel type | Petrol and two-stroke oil premix |
| Fuel-to-oil ratio | 25:1 |
| Ignition | Electronic |
| Carburettor | Diaphragm type |
| Fuel-tank capacity | 1.1 litres |
| Engine weight | 4.3kg |
Vibrator Specifications
| Specification | Measurement |
|---|---|
| Spud diameter | 45mm |
| Spud body length | 350mm |
| Overall spud length | 1,060mm |
| Drive connection | 7mm square |
| Engine mount-hole spacing | 100mm diagonally, centre to centre |
| Clutch diameter | 75mm |
| Product weight | Approximately 10kg |
Package Includes
- PowerQuip 51.7cc two-stroke engine
- Concrete-vibrator drive assembly
- 45mm vibrating spud attachment
- Shoulder harness
- Tool kit
Warranty
Includes a 12-month domestic-use warranty. The warranty excludes normal wear-and-tear items, including spark plugs and the vibrating spud end.
